Howo NX 371HP Tipper 6x4 10 Wheels 20 Cubic Meters Canter Right Drive Dump Truck With Electric Tarpaulin

Name: Howo NX 371HP Tipper 6x4 10 Wheels 20 Cubic Meters Canter Right Drive Dump Truck With Electric Tarpaulin
Brand: Jinan Heavy Truck Import & Export Co., Ltd.
SKU: jnhtc
Price: 24,255.00 USD
Availability: InStock

Todos os Produtos

Camião basculante resistente
(512)

Caminhão pesado da carga
(161)

Prima - caminhão do motor
(218)

caminhão betoneira
(126)

caminhão da sucção da água de esgoto
(43)

caminhão de depósito de gasolina
(94)

Caminhão do compressor do lixo
(71)

carro de bombeiros do salvamento
(24)

guindaste montado caminhão
(99)

Caminhões leves do anúncio publicitário do dever
(203)

semi reboques resistentes
(180)

Caminhão da bomba concreta
(17)

Maquinaria de construção pesada
(50)

Carregador compacto da roda
(12)

Peças sobresselentes de Sinotruk
(18)

Máquina escavadora hidráulica da esteira rolante
(27)

Maquinaria da manutenção de estrada
(27)

Escavadora da esteira rolante
(11)

CAMINHÃO DE TANQUE DA ÁGUA
(112)

camião basculante da mineração
(23)

Os melhores produtos

Shacman L3000 Veículo de vedação de cascalho síncrono 6 rodas 4x2 Shacman Chassis a ser comprado

Melhor caminhão Shacman E3 6X4 300HP 400HP 30T 50T

Novo caminhão SINOTRUK com tração nas quatro rodas 6X6 336HP HW76

Certificado

CHINA Jinan Heavy Truck Import & Export Co., Ltd. Certificações

Revisões do cliente

Sente bom, muito similar ao HOMEM!

—— Hafiz Ahmed

Trabalhe com sua empresa para salvar o dinheiro, o tempo e a energia.

—— Zahid Mohammed

Obrigado para seu apoio continuado e preste serviços de manutenção dentro a 6years passado.

—— Dave Balah

O melhor da qualidade com preço razoável e o serviço profissional dão-nos a confiança profunda para construir a cooperação a longo prazo.

—— Jayson Kan

Bom após o serviço e a qualidade de vendas

—— Mahanmd Steve

Estou Chat Online Agora

Howo NX 371HP Tipper 6x4 10 Wheels 20 Cubic Meters Canter Right Drive Dump Truck With Electric Tarpaulin

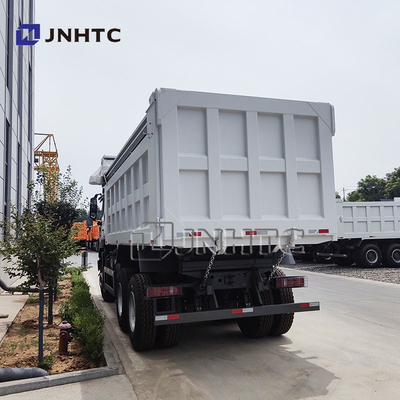

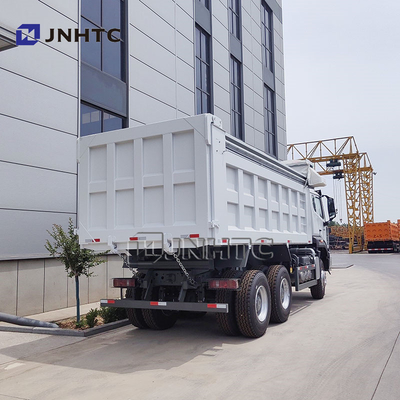

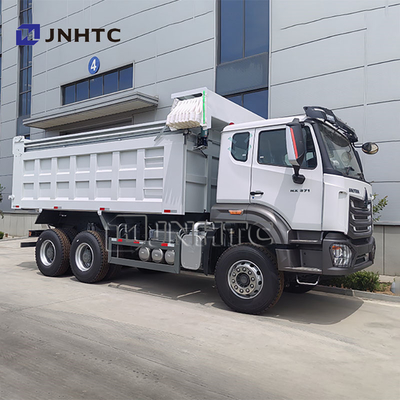

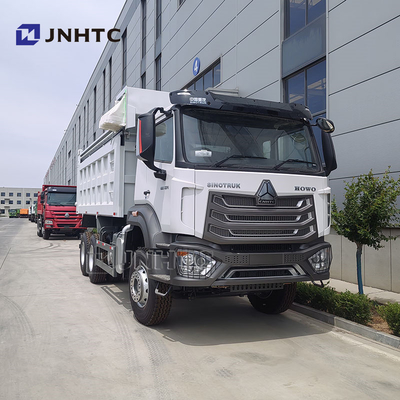

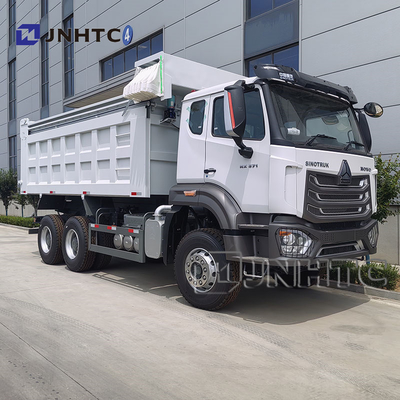

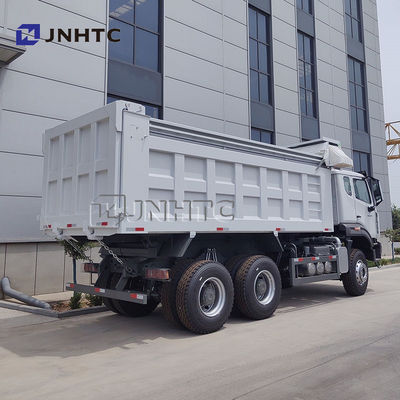

Imagem Grande : Howo NX 371HP Tipper 6x4 10 Wheels 20 Cubic Meters Canter Right Drive Dump Truck With Electric Tarpaulin

Detalhes do produto:

Place of Origin:	China
Marca:	Howo
Certificação:	ISO CCC
Model Number:	jnhtc

Condições de Pagamento e Envio:

Minimum Order Quantity:	1 UNIT
Preço:	USD23100-25410
Packaging Details:	nude
Delivery Time:	45 Work days
Payment Terms:	L/C, T/T
Supply Ability:	50 units per week

Contato

Howo NX 371HP Tipper 6x4 10 Wheels 20 Cubic Meters Canter Right Drive Dump Truck With Electric Tarpaulin

descrição

Horsepower:	400hp	Colorwhite:	WHITE
Fuel Tank:	400L	Drive Wheel:	6x4
Tyres:	12.00R20	Capacity (Load):	21 - 30T

Howo NX 371HP Tipper 6x4 10 Wheels 20 Cubic Meters Canter Right Drive Dump Truck With Electric Tarpaulin

Model	ZZ3257V3847B1
Driver's Cab	HW76 extended cab, with one sleeper berth ,with air conditioner, air seat for driver. MP3
Engine	Model: WP12.400E201, Euro II emission standard, 4 stroke injection diesel engine, 6 cylinder in-line with water cooling, turbo-charging & inter cooling. Maximum output: 400PS (294kW) at 2100 rpm Maximum torque: 2060Nm at 1200-1500rpm Bore: 126mm Stroke: 155mm Displacement: 11.596L Brand: Weichai
Steering	Model: BOSCH Hydraulic steering with power assistance Left hand driving
Clutch	Φ430 Pull-type diaphragm spring clutch
Transmission	Model: HW19710, 10 forward and 2 reverse Manual type With transmission power take-off HW70 Max Torque: 1900N·M
Front Axle	Model: HF9 Drum brake system Rated loading capacity :9000kgs
Rear Axle	Model: MCP16ZG Capacity: 16000kgs Drum braking steering axle,self-adjusting arm Speed ratio:
Wheelbase	3800+1350 mm
Brake System	Type :Wabco braking system ABS 4S/4M Engine exhaust valve brake
Oil Tanker	300L aluminum alloy fuel tank
Tires	Types: 12.00R20 radial tire; 18PR 10 pcs, plus one pc spare tire
Bumper	Metal bumper
Dump body	560023001500mm, 8mm for bottom and 6 mm for side plate, rectangular box, Chinese brand front lifting cylinder, with integral fender, headlight cover.
Dimensions in mm	Front wheel track (mm): 2022 Rear wheel track (mm):1830 Overhang(front/rear) (mm):1500/1870 Overall Dimension (mm): 865025803450
Weight in kg	Dead weight (kg):13500 Gross vehicle weight (kg):25000

A dump truck, also known as a dumper truck or tipper truck, is a vehicle designed for transporting loose material such as sand, gravel, or demolition waste for construction. A typical dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic rams to lift the front, allowing the material in the bed to be deposited ("dumped") on the ground behind the truck at the site of delivery.

Key Features of Dump Trucks:

1. Dump Bed

Design: An open-box bed mounted on the truck's chassis.
Operation: Hinged at the rear with hydraulic rams to lift the front for dumping materials.

2. Hydraulic System

Functionality: Powers the lifting mechanism of the dump bed.
Components: Includes hydraulic pumps, cylinders, and controls.

3. Chassis and Frame

Design: Built to withstand heavy loads and rough conditions.
Reinforcement: Strong steel frames and robust suspension systems.

4. Tires and Axles

Durability: Heavy-duty tires and axles to support significant weight and provide stability.

5. Engine

Power: High-power engines to handle heavy loads and challenging terrains.

6. Control Systems

Manual Controls: Basic models use manual levers and switches for operation.
Electronic Controls: Advanced models feature electronic systems for precision and ease of use.

Howo NX 371HP Tipper 6x4 10 Wheels 20 Cubic Meters Canter Right Drive Dump Truck With Electric Tarpaulin 0

Howo NX 371HP Tipper 6x4 10 Wheels 20 Cubic Meters Canter Right Drive Dump Truck With Electric Tarpaulin 5
